High-Quality Outdoor Fixed – Aluminum Die Cast
The Die-Cast Series is designed to deliver consistent outdoor LED video display performance with sharp resolution and vivid color reproduction, even under direct sunlight. Its robust construction supports continuous 24/7 operation, making it suitable for high-traffic outdoor environments.The Die-Cast Series is designed to deliver consistent outdoor LED video display performance with sharp resolution and vivid color reproduction, even under direct sunlight. Its robust construction supports continuous 24/7 operation, making it suitable for high-traffic outdoor environments.
Premium Outdoor LED Video Wall Panels
The outdoor LED video wall panels in the Die-Cast Series feature precision-engineered die-cast aluminium cabinets that provide a lightweight yet highly durable structure. This cabinet design ensures accurate panel alignment, excellent flatness, and efficient heat dissipation.
Versatile Outdoor LED Video Display Boards
The Die-Cast Series supports multiple pixel pitch options through its advanced outdoor LED video display boards, allowing customization based on viewing distance and screen size. Whether installed in large stadiums or roadside billboards, the system delivers clear, high-impact visuals.
This flexibility makes the series suitable for both fixed installations and large-format outdoor display applications.
- Ultra-Light Die-Cast Aluminum Design : 23kg lightweight cabinet (easy single-person handling), corrosion/water/rust-proof for durability.
- Wide Temperature & Weather Resistance : Operates stably from -40℃ to +60℃, IP65 waterproof/dustproof, IK08 impact-resistant for all-weather use.
- Superior Visual Performance: High refresh rate (1920-7680Hz), 8000 nits’ brightness, HDR support, and 100,000-hour lifespan for vivid, long-lasting displays.

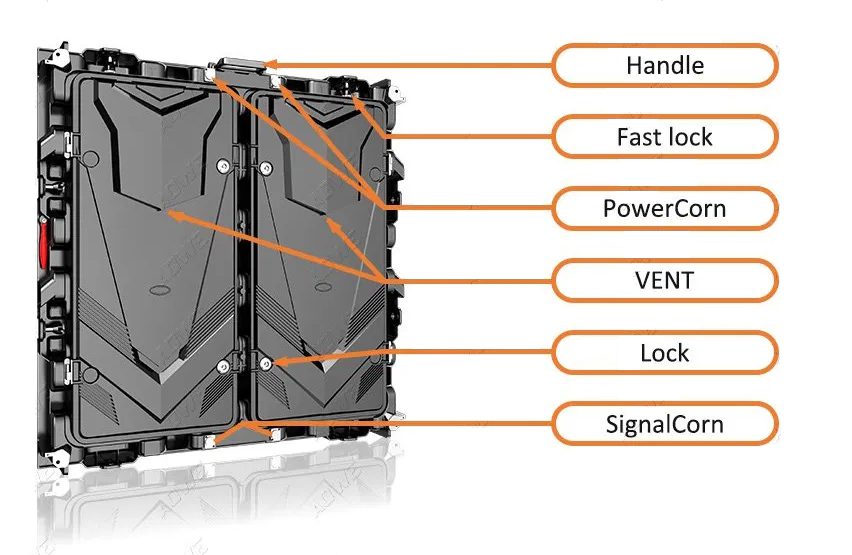

- Flexible Installation & Maintenance Supports ground/roof/wall/pillar/hanging setups; rear-accessible modules for easy maintenance and low replacement costs.
- Intelligent Auto-Brightness Control Adjusts brightness (5000-10000 nits) automatically based on ambient light, saving energy and optimizing visibility.
Reliable Outdoor LED Displays for Any Weather

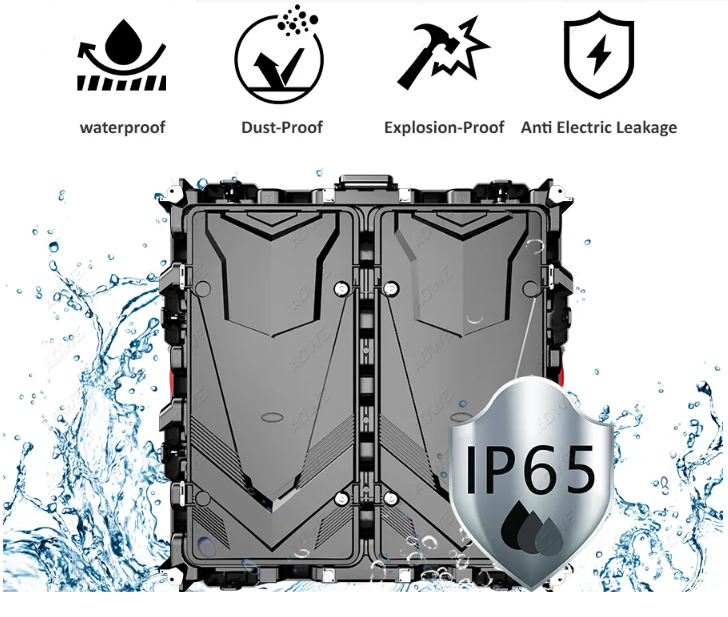

The outdoor LED video display range in the Die-Cast Series is designed with IP65-rated protection, ensuring resistance to water, dust, heat, and humidity. This weatherproof construction enables stable performance across varying climatic conditions without compromising display quality.
LED Video Display Wall for Outdoor Advertising
For long-term branding and promotional use, the LED video display wall for outdoor advertising offers wide viewing angles, high refresh rates, and energy-efficient operation. These features ensure smooth content playback and strong visibility, making it a cost-effective solution for outdoor advertising campaigns.

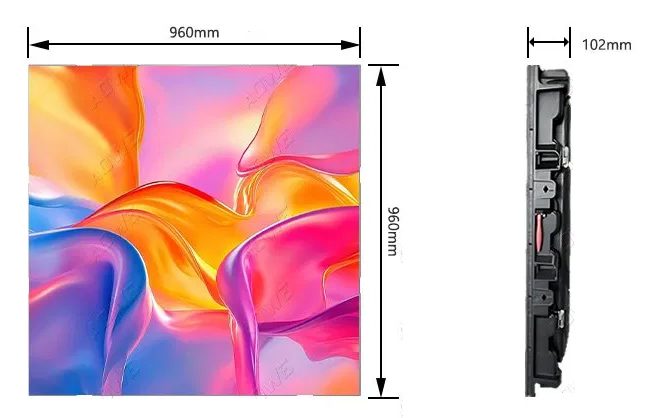

| Pixel Pitch | Modules Resolution | Cabinet Size | Density | Refresh Rate | Brightness | Scan |
|---|---|---|---|---|---|---|
| 2.5mm | 64x128pixel | 960x960mm | 160,000pixel | 1920-7680Hz | 4,500cd/sq.m | 1/16 |
| 3.076mm | 52x104pixel | 960x960mm | 105,625pixel | 1920-7680Hz | 5,000cd/sq.m | 1/13 |
| 4mm | 40x80pixel | 960x960mm | 62,500pixel | 1920-7680Hz | 5,000cd/sq.m | 1/10 |
| 5mm | 32x64pixel | 960x960mm | 40,000pixel | 1920-7680Hz | 5,500cd/sq.m | 1/8 |
| 6.67mm | 24x48pixel | 960x960mm | 22,500pixel | 1920-7680Hz | 5,500cd/sq.m | 1/6 |
| 8mm | 20x40pixel | 960x960mm | 15,625pixel | 1920-7680Hz | 5,500cd/sq.m | 1/4 |
| 10mm | 16x32pixel | 960x960mm | 10,000pixel | 1920-7680Hz | 5,500cd/sq.m | 1/2 |
